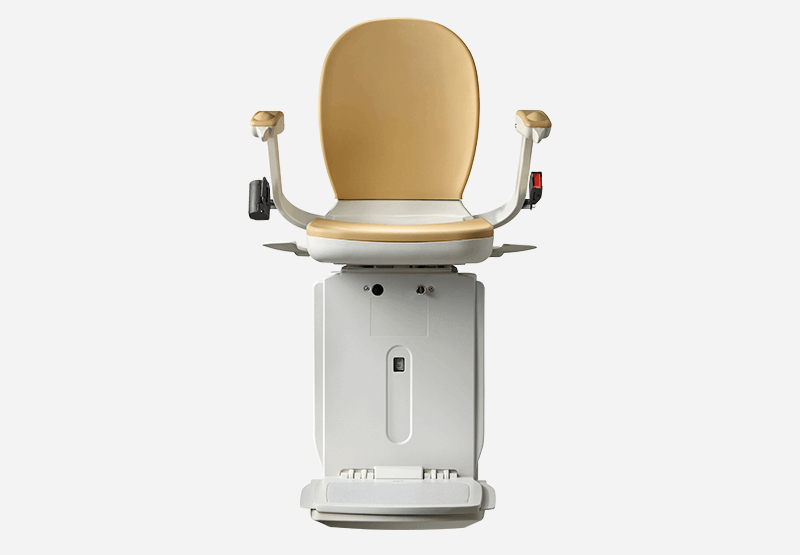

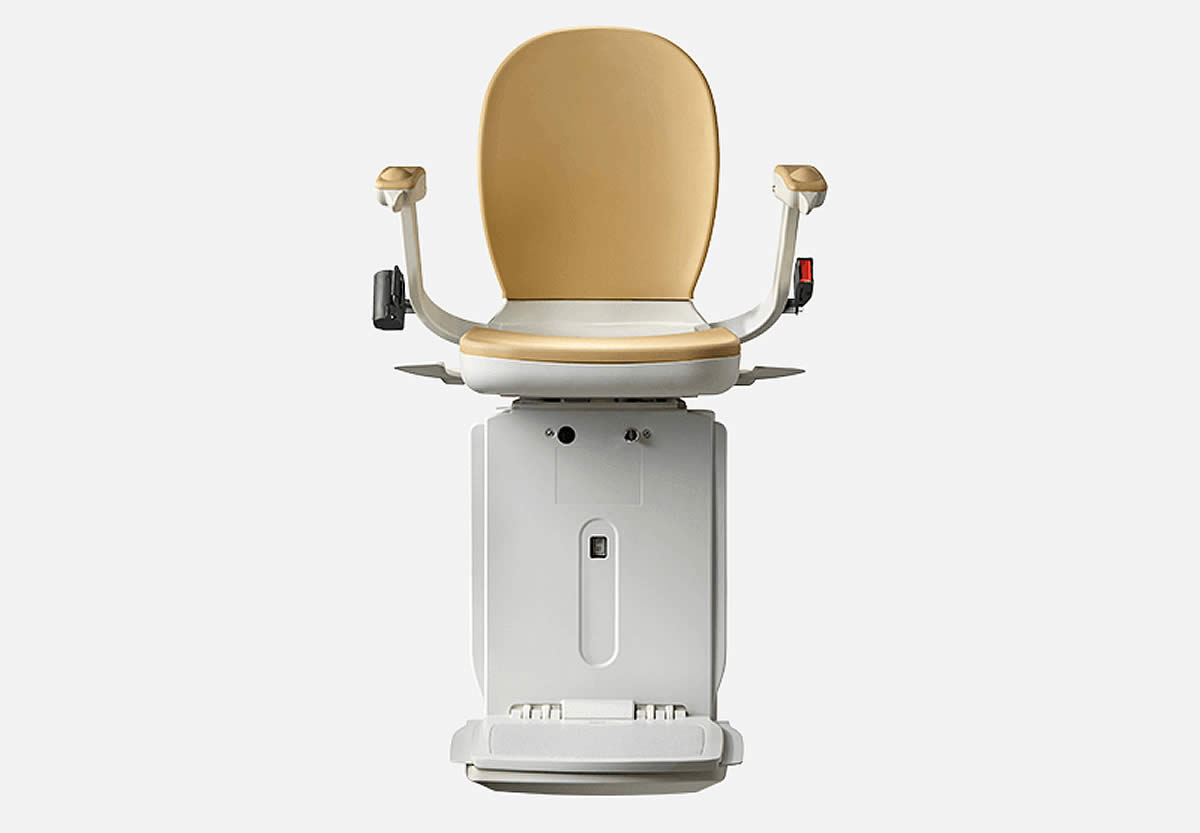

The Acorn 180 Curved Stairlift

Welcome to one of the most innovative stairlifts in the world.

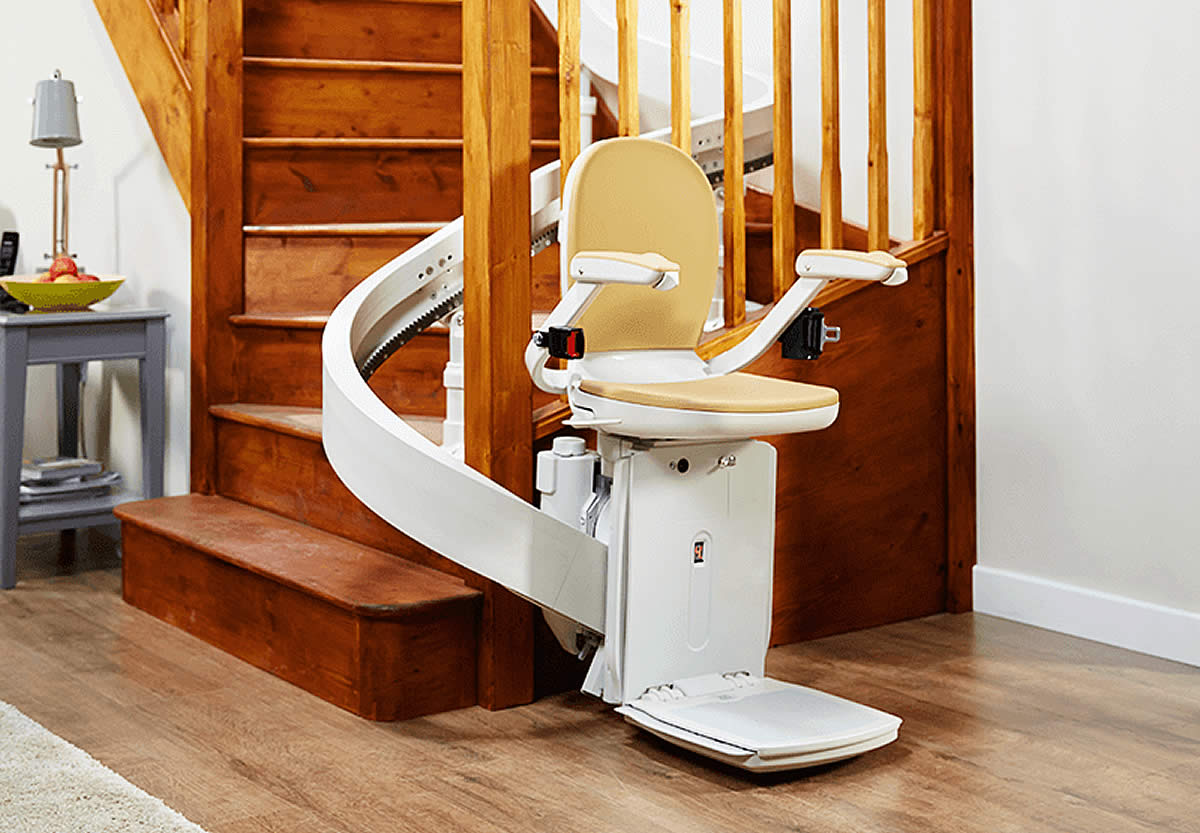

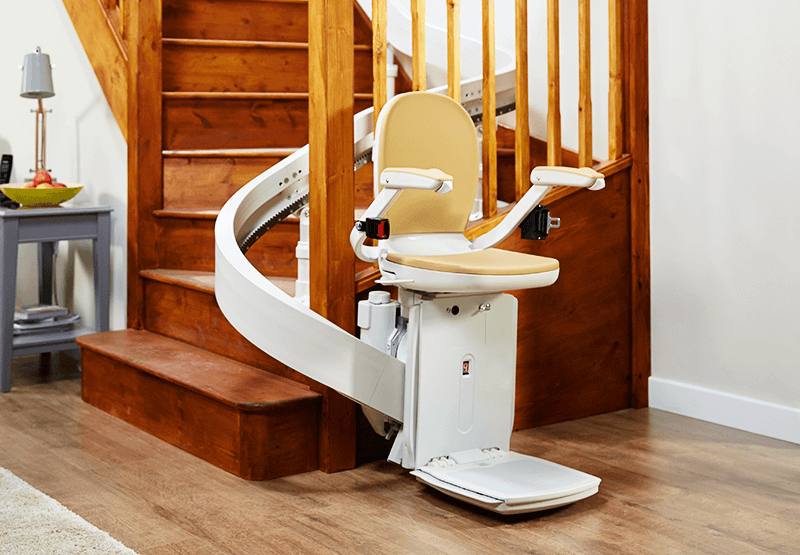

Designed from the ground-up for any curved staircase, offering a comfortable and reliable ride. The advanced self-levelling carriage moves along the modular rail system coming to a soft stop with ease.

With its low running costs, it even operates through a power cut. The sleek, smooth and modern rail system is unique to this stairlift. There is no waiting weeks to have an expensive rail made for your home, utilising the FastTrack® system, it can be installed in a matter of days with no mess and no fuss.

Contact us for FREE no obligation advice and speak to one of our friendly experts.

Acorn 180 Stairlift Measurements and Technical Information Image
Dimensions inch
A Overall height 38.25
B Height of Seat 17.25
C Overall depth (from wall) 22.25
D Overall depth (when folded) 13.25
E Width of footrest 14.75
F Overall width 24.5
G Depth of seat 16

This stairlift is independently tested to comply with:

  • BS EN 81-40:2008 - European safety standard - 'Specification for powered stairlifts'.
  • CE mark - Acorn Stairlift meets the requirements of the applicable European Directive(s).
  • ASME compliant for mechanical and electrical hazards - ASME A18.1 and A17.5.
  • ISO 9386:2-2000 International standard for stairlifts.
Motor output speed 120mm/s | 4.8inches per second - No greater than 0.15 meters per second
Method of drive Rack and pinion
Power supply 24V DC (battery)
Maximum capacity 264lbs maximum weights maximum weights
Track Modular rail, Extruded aluminium
Mains supply 50-60Hz, 100-240V AC

* NOTE: Acorn, in keeping with its policy of continual development, reserves the right to change specification without notice. All measurements are approximate.

If you’re considering a stairlift, but don’t know if it will be suitable for you and your home, the best way to get all the answers you need is by booking an Acorn home survey.
