Straight Stairlifts: Acorn 130

A straightforward solution for straight staircases.

A straight stairlift is the ultimate staircase solution, giving you the full use of the home you love. Blending seamlessly into your home, with a smooth start and stop mechanism, you can glide effortlessly up and down the stairs

Continually developed, improved and refined over many years, the Acorn 130 is the direct descendant of our very first straight stairlift, the Acorn Superglide.

Contact us for FREE no obligation advice and speak to one of our friendly experts.

+ VIEW STRAIGHT STAIRLIFT TECHNICAL DETAILS

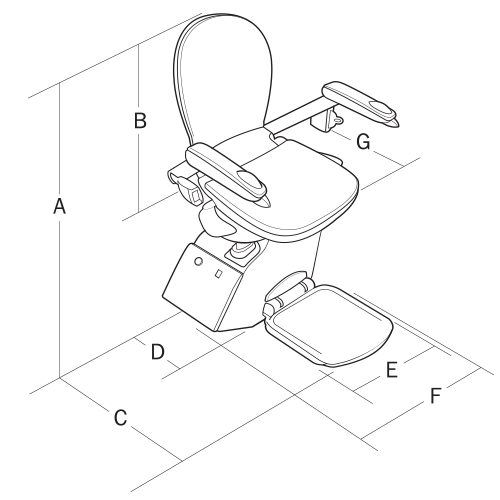

Acorn 130 Stairlift Measurements and Technical Information
Dimensions inch
A Overall height 38.5
B Height of Seat 17.25
C Overall depth (from wall) 22.5
D Overall depth (when folded) 12.25
E Width of footrest 12.25
F Overall width 23.25
G Depth of seat 16

This stairlift is independently tested to comply with:

  • BS EN 81-40:2008 - European safety standard - 'Specification for powered stairlifts'.
  • CE mark - Acorn Stairlift meets the requirements of the applicable European Directive(s).
  • ASME compliant for mechanical and electrical hazards - ASME A18.1 and A17.5.
  • ISO 9386:2-2000 International standard for stairlifts.
Specifications
Motor output speed 120mm/s | 4.8inches per second - No greater than 0.15 meters per second
Method of drive Rack and pinion
Power supply 24V DC (battery)
Maximum capacity 280lbs/127kg
Track Extruded aluminium
Mains supply 50-60Hz, 100-240V AC

* NOTE: Acorn, in keeping with its policy of continual development, reserves the right to change specification without notice. All measurements are approximate.


If you’re considering a stairlift, but don’t know if it will be suitable for you and your home, the best way to get all the answers you need is by booking an Acorn home survey.


Alternative Stairlift Models

Acorn 180 Curved Stairlift

One of the most innovative stairlifts in the world:

  • NEXT DAY Installation
  • Single stairlift rail that uses an innovative and unique to Acorn FastTrack® system
  • 120kg maximum weights
  • Includes 12-months manufacturer guarantee
Get a FREE quote More information

Acorn 130 Outdoor Stairlift

Open up and enjoy your outdoor space:

  • NEXT DAY Installation
  • Comes with a weather resistant outdoor cover
  • Outdoor stairlift is fitted to the steps, not the wall
  • 127kg maximum weights
  • Includes 12-months manufacturer guarantee
Get a FREE quote More information
